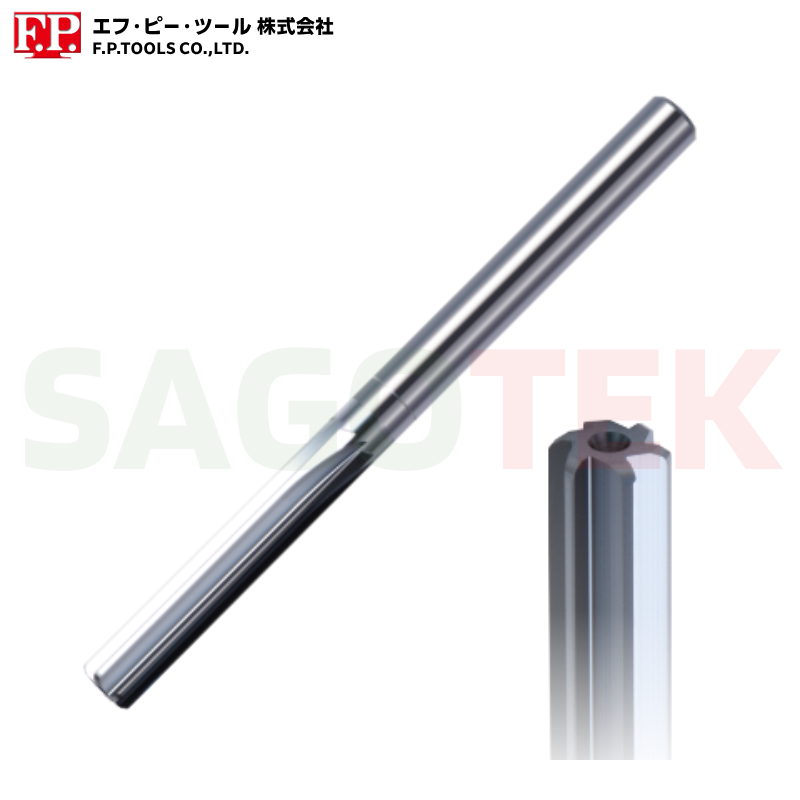

Premium Reamer

FPR〇.〇〇〇

» Hạn chế tối đa hiện tượng rối và quấn phoi nhờ hình học dụng cụ độc quyền
» Cho phép gia công tinh lỗ ổn định, độ chính xác cao ngay từ giai đoạn cắt ban đầu
» Đạt được sự cân bằng tối ưu giữa hiệu suất gia công cao và giảm mài mòn dụng cụ
» Tương thích với nhiều loại vật liệu gia công khác nhau
» Sử dụng lớp phủ F.P.A, mang lại độ trơn vượt trội và khả năng chịu nhiệt cao

Danh mục: Mũi doa Thương hiệu: F.P TOOLS

📩 Nhận tư vấn 📞 Hotline: 0901 308 595

Mô tả
Đánh giá (0)

F-PREMIUM Premium Reamer

FPR Application: S50C

Tool: FPR6.000 vs. Competitor A & B
Work Material: S50C
Cutting Speed: Vc=40m/min (n=2,120min ^-1 )
Feed: f=0.2mm/rev (Vf=424mm/min)
Hole Depth: 18mm (3D Through-Hole)
Reaming Allowance: φ0.2mm
Machine: Vertical Machining Center
Coolant: Water-Soluble

In the S50C machining test with the FPR φ6.0, competing tools failed after only 90 and 219 holes. In stark contrast, the FPR showcased exceptional durability, continuing to machine even beyond 1,600 holes. With cutting-edge wear limited to only 0.06 mm, it significantly reduces tool change frequency and minimizes production downtime. Experience a new standard of durability—truly worthy of the name “Premium.”

F-PREMIUM Premium Reamer

FPR Application: S50C

Tool: FPR6.000 vs. Competitor A & B
Work Material: S50C
Cutting Speed: Vc=40m/min (n=2,120min ^-1 )
Feed: f=0.2mm/rev (Vf=424mm/min)
Hole Depth: 18mm (3D Through-Hole)
Reaming Allowance: φ0.2mm
Machine: Vertical Machining Center
Coolant: Water-Soluble

The value of the Premium Reamer goes beyond just extended tool life. In S50C machining, it achieves superior hole accuracy—surpassing the competitors in surface roughness, roundness, and cylindricity. By maintaining high quality alongside durability, it contributes to reduced post-processing and improved production yields.

F-PREMIUM Premium Reamer

FPR Application: S50C

Tool: FPR6.000 vs. Competitor A & B
Work Material: S50C
Cutting Speed: Vc=40m/min (n=2,120min ^-1 )
Feed: f=0.2mm/rev (Vf=424mm/min)
Hole Depth: 18mm (3D Through-Hole)
Reaming Allowance: φ0.2mm
Machine: Vertical Machining Center
Coolant: Water-Soluble

While the Premium Reamer may have a higher unit price than the competitors, its exceptional longevity allows for a cost reduction of up to 90% per hole. When considering the “total cost”—including reduced downtime for tool changes, reordering administration, and inventory management—the Premium Reamer proves to be the most economical choice.

F-PREMIUM Premium Reamer

FPR Application: S50C

Tool: FPR6.000
Cutting Speed: Vc=40m/min (n=2,120min ^-1 )
Feed: f=0.2mm/rev (Vf=424mm/min)

Tool: Carbide uncoated reamer
Cutting Speed: Vc=20m/min (n=1,060min ^-1 )
Feed: f=0.1mm/rev (Vf=106mm/min)

Hole Depth: 18mm (3D Through-Hole)
Reaming Allowance: φ0.2mm
Machine: Vertical Machining Center
Coolant: Water-Soluble

The true value of the Premium Reamer goes far beyond durability. Even at 4 times the machining efficiency of standard uncoated carbide reamers, tool wear is reduced to just 1/10. This delivers both shorter machining times and dramatically extended tool life. It offers truly “Premium” performance—striking the perfect balance between productivity and cost savings.

F-PREMIUM Premium Reamer

FPR Application: S50C

Tool: FPR6.000
Work Material: S50C
Cutting Speed: Vc=40m/min (n=2,120min ^-1 )
Feed: f=0.2mm/rev (Vf=424mm/min)
Hole Depth: 18mm (3D Through-Hole)
Reaming Allowance: φ0.2mm
Machine: Vertical Machining Center
Coolant: Water-Soluble

Proven to maintain stable, high-precision hole finishing in S50C, the most common carbon steel. This reliability extends across a broad range of materials, from mild steels (SS grades) and alloy steels (SCM) to hardened and tempered steels up to 50 HRC. Confidence in any machining environment—that’s the assurance of the Premium Reamer.

Specification Table

Product Code/ Cutting Diameter DC	Point Length PL	Length of Cut LC	Length of Chip Flute LCF	Usable Length LU	Overall Length OAL	Connection Diameter DCON	Number of Effective Cutting Edges ZEFP
FPR 2.950~3.050	0.3	18	25	35	60	3	4
FPR 3.051~3.350	0.3	18	25	35	60	4	4
FPR 3.351~3.650	0.4	18	26	35	60	4	4
FPR 3.651~4.050	0.5	18	26	35	60	4	4
FPR 4.051~5.050	0.5	25	35	40	70	6	6
FPR 5.051~6.050	0.5	25	35	40	80	6	6
FPR 6.051~8.050	0.5	25	36	40	80	8	6
FPR 8.051~9.050	0.7	35	47	55	90	10	6
FPR 9.051~10.050	0.7	35	48	55	90	10	6
FPR 10.051~12.050	0.7	40	54	60	100	12	6

Reference Cutting Conditions

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	10~40	0.025~0.15	0.1
4	10~40	0.03~0.2	0.1
5	10~40	0.04~0.25	0.1
6	10~40	0.05~0.3	0.1
8	10~40	0.07~0.4	0.1
10	10~40	0.08~0.5	0.1
12	10~40	0.10~0.5	0.2

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	10~40	0.025~0.15	0.1
4	10~40	0.03~0.2	0.1
5	10~40	0.04~0.25	0.1
6	10~40	0.05~0.3	0.2
8	10~40	0.07~0.4	0.2
10	10~40	0.08~0.5	0.2
12	10~40	0.10~0.5	0.3

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	10~30	0.025~0.15	0.1
4	10~30	0.03~0.2	0.1
5	10~30	0.04~0.25	0.1
6	10~30	0.05~0.3	0.1
8	10~30	0.07~0.4	0.1
10	10~30	0.08~0.5	0.1
12	10~30	0.10~0.5	0.2

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	5~30	0.025~0.15	0.1
4	5~30	0.03~0.2	0.1
5	5~30	0.04~0.25	0.1
6	5~30	0.05~0.3	0.2
8	5~30	0.07~0.4	0.2
10	5~30	0.08~0.5	0.2
12	5~30	0.10~0.5	0.3

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	5~15	0.025~0.15	0.1
4	5~15	0.03~0.2	0.1
5	5~15	0.04~0.25	0.1
6	5~15	0.05~0.3	0.1
8	5~15	0.07~0.4	0.1
10	5~15	0.08~0.5	0.1
12	5~15	0.10~0.5	0.2

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	10~40	0.025~0.15	0.1
4	10~40	0.03~0.2	0.1
5	10~40	0.04~0.25	0.1
6	10~40	0.05~0.3	0.2
8	10~40	0.07~0.4	0.2
10	10~40	0.08~0.5	0.2
12	10~40	0.10~0.5	0.3

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	20~60	0.025~0.15	0.1
4	20~60	0.03~0.2	0.1
5	20~60	0.04~0.25	0.1
6	20~60	0.05~0.3	0.2
8	20~60	0.07~0.4	0.2
10	20~60	0.08~0.5	0.2
12	20~60	0.10~0.5	0.3

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	15~50	0.025~0.15	0.1
4	15~50	0.03~0.2	0.1
5	15~50	0.04~0.25	0.1
6	15~50	0.05~0.3	0.2
8	15~50	0.07~0.4	0.2
10	15~50	0.08~0.5	0.2
12	15~50	0.10~0.5	0.3

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	5~30	0.025~0.15	0.1
4	5~30	0.03~0.2	0.1
5	5~30	0.04~0.25	0.1
6	5~30	0.05~0.3	0.1
8	5~30	0.07~0.4	0.1
10	5~30	0.08~0.5	0.1
12	5~30	0.10~0.5	0.2

Cutting Diameter DC (mm)	Cutting speed Vc (m/min)	Feed f (mm/rev)	Reaming allowance (φmm)
3	5~20	0.025~0.15	0.1
4	5~20	0.03~0.2	0.1
5	5~20	0.04~0.25	0.1
6	5~20	0.05~0.3	0.1
8	5~20	0.07~0.4	0.1
10	5~20	0.08~0.5	0.1
12	5~20	0.10~0.5	0.2
