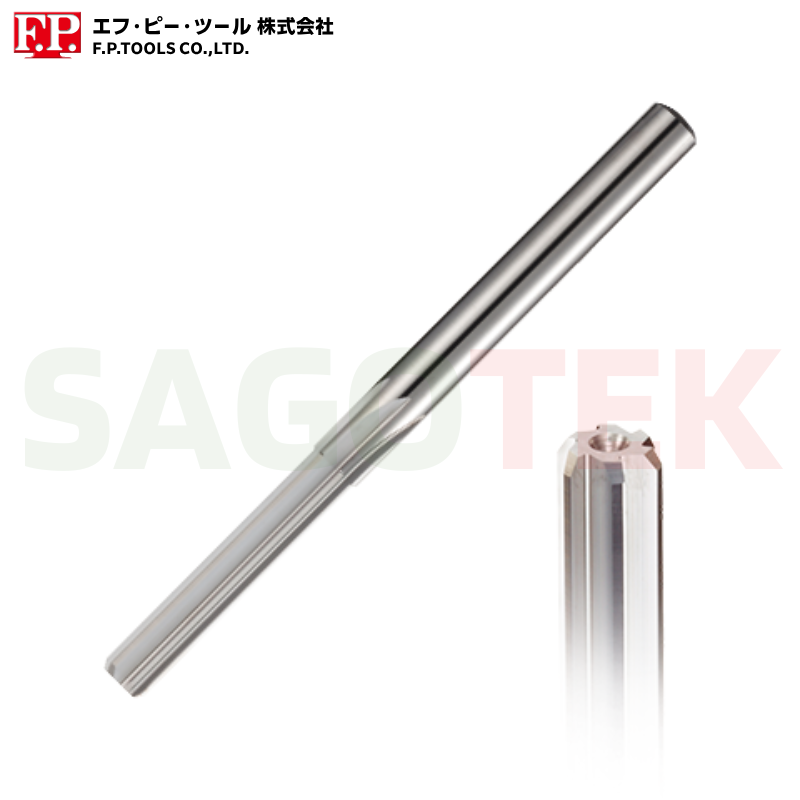

Carbide Reamer G Series

CG〇.〇〇〇

» Đảm bảo doa ổn định, độ chính xác cao trên nhiều loại vật liệu gia công khác nhau
» Kết cấu hợp kim cứng (carbide) cho phép tốc độ cắt cao hơn và hiệu suất vượt trội so với dao doa HSS
» Cung cấp dải kích thước theo bước 0,005 mm, bắt đầu từ Ø0,3 mm, tạo thành hệ sản phẩm liên tục, đáp ứng mọi yêu cầu dung sai lỗ

Danh mục: Thương hiệu:
📩 Nhận tư vấn 📞 Hotline: 0901 308 595

Specification Table


Product Code/ Cutting Diameter DC Length of Chip Flute LCF Overall Length OAL Connection Diameter DCON Number of Effective Cutting Edges ZEFP
CG 0.200~0.290
 3 45 1.0 2

Product Code/ Cutting Diameter DC Point Length PL Length of Cut LC Overall Length OAL Connection Diameter DCON Number of Effective Cutting Edges ZEFP
CG 0.300~0.405 0.1 4 50 1.0 4
CG 0.410~0.505 0.1 5 50 1.0 4
CG 0.510~0.605 0.1 6 50 1.0 4
CG 0.610~0.705 0.1 10 50 1.0 4
CG 0.710~1.005 0.2 12 50 1.0 4
CG 1.010~1.305 0.2 15 50 1.5 4
CG 1.310~1.505 0.3 16 50 1.5 4
CG 1.510~2.005 0.4 18 50 2.0 4
CG 2.010~2.505 0.5 20 50 2.5 4
CG 2.510~2.905
↑ Center Pip		 0.5 20 50 3.0 4
CG 2.910~3.005
↓ Center Hole		 0.5 60 3.0 4
CG 3.010~3.505 0.5 60 3.5 4
CG 3.510~4.005 0.5 60 4.0 4
CG 4.010~4.505 0.5 30 70 4.5 6
CG 4.510~5.005 0.5 30 70 5.0 6
CG 5.010~5.505 0.8 30 80 5.5 6
CG 5.510~6.005 0.8 30 80 6.0 6
CG 6.010~7.005 0.8 35 80 7.0 6
CG 7.010~8.005 0.8 35 80 8.0 6
CG 8.010~9.005 1.0 40 90 9.0 6
CG 9.010~10.005 1.0 40 90 10.0 6
CG 10.010~11.005 1.0 40 90 11.0 6
CG 11.010~12.100 1.0 45 90 12.0 6

Reference Cutting Conditions

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~20 0.008~0.012 0.05
1 10~20 0.015~0.025 0.1
2 10~20 0.03~0.06 0.1
3 10~20 0.05~0.1 0.1
4 10~20 0.06~0.12 0.1
5 10~20 0.08~0.16 0.1
6 10~20 0.1~0.2 0.2
7 10~20 0.12~0.24 0.2
8 10~20 0.12~0.26 0.2
9 10~20 0.15~0.3 0.2
10 10~20 0.15~0.3 0.3
12 10~20 0.18~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~20 ~0.005 0.05
1 10~20 ~0.01 0.05
2 10~20 ~0.017 0.08
3 10~20 ~0.025 0.1
4 10~20 ~0.03 0.1
5 10~20 ~0.04 0.1
6 10~20 ~0.05 0.1
7 10~20 ~0.06 0.1
8 10~20 ~0.06 0.1
9 10~20 ~0.07 0.1
10 10~20 ~0.07 0.2
12 10~20 ~0.09 0.2

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 5~15 0.008~0.012 0.05
1 5~15 0.015~0.025 0.1
2 5~15 0.03~0.06 0.1
3 5~15 0.05~0.1 0.1
4 5~15 0.06~0.12 0.1
5 5~15 0.08~0.16 0.1
6 5~15 0.1~0.2 0.2
7 5~15 0.12~0.24 0.2
8 5~15 0.12~0.26 0.2
9 5~15 0.15~0.3 0.2
10 5~15 0.15~0.3 0.3
12 5~15 0.18~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 5~12 0.012~0.025 0.05
1 5~12 0.025~0.05 0.1
2 5~12 0.05~0.08 0.1
3 5~12 0.075~0.12 0.1
4 5~12 0.1~0.15 0.1
5 5~12 0.12~0.17 0.1
6 5~12 0.15~0.2 0.2
7 5~12 0.18~0.24 0.2
8 5~12 0.18~0.26 0.2
9 5~12 0.2~0.3 0.2
10 5~12 0.2~0.3 0.3
12 5~12 0.27~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~18 0.008~0.012 0.05
1 10~18 0.015~0.025 0.1
2 10~18 0.03~0.05 0.1
3 10~18 0.05~0.75 0.1
4 10~18 0.06~0.1 0.1
5 10~18 0.08~0.12 0.1
6 10~18 0.1~0.15 0.2
7 10~18 0.12~0.18 0.2
8 10~18 0.12~0.18 0.2
9 10~18 0.15~0.2 0.2
10 10~18 0.15~0.2 0.3
12 10~18 0.18~0.27 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 20~40 0.012~0.025 0.05
1 20~40 0.025~0.05 0.1
2 20~40 0.05~0.08 0.1
3 20~40 0.075~0.12 0.1
4 20~40 0.1~0.15 0.1
5 20~40 0.12~0.17 0.1
6 20~40 0.15~0.2 0.2
7 20~40 0.18~0.24 0.2
8 20~40 0.18~0.26 0.2
9 20~40 0.2~0.3 0.2
10 20~40 0.2~0.3 0.3
12 20~40 0.27~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 15~30 0.012~0.025 0.05
1 15~30 0.025~0.05 0.1
2 15~30 0.05~0.08 0.1
3 15~30 0.075~0.12 0.1
4 15~30 0.1~0.15 0.1
5 15~30 0.12~0.17 0.1
6 15~30 0.15~0.2 0.2
7 15~30 0.18~0.24 0.2
8 15~30 0.18~0.26 0.2
9 15~30 0.2~0.3 0.2
10 15~30 0.2~0.3 0.3
12 15~30 0.27~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~20 0.008~0.012 0.05
1 10~20 0.015~0.025 0.1
2 10~20 0.03~0.06 0.1
3 10~20 0.05~0.1 0.1
4 10~20 0.06~0.12 0.1
5 10~20 0.08~0.16 0.1
6 10~20 0.1~0.2 0.2
7 10~20 0.12~0.24 0.2
8 10~20 0.12~0.26 0.2
9 10~20 0.15~0.3 0.2
10 10~20 0.15~0.3 0.3
12 10~20 0.18~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 5~15 0.005~0.012 0.05
1 5~15 0.01~0.025 0.05
2 5~15 0.017~0.05 0.08
3 5~15 0.025~0.075 0.1
4 5~15 0.03~0.1 0.1
5 5~15 0.04~0.12 0.1
6 5~15 0.05~0.15 0.1
7 5~15 0.06~0.18 0.1
8 5~15 0.06~0.18 0.1
9 5~15 0.07~0.2 0.1
10 5~15 0.07~0.2 0.2
12 5~15 0.09~0.27 0.2
