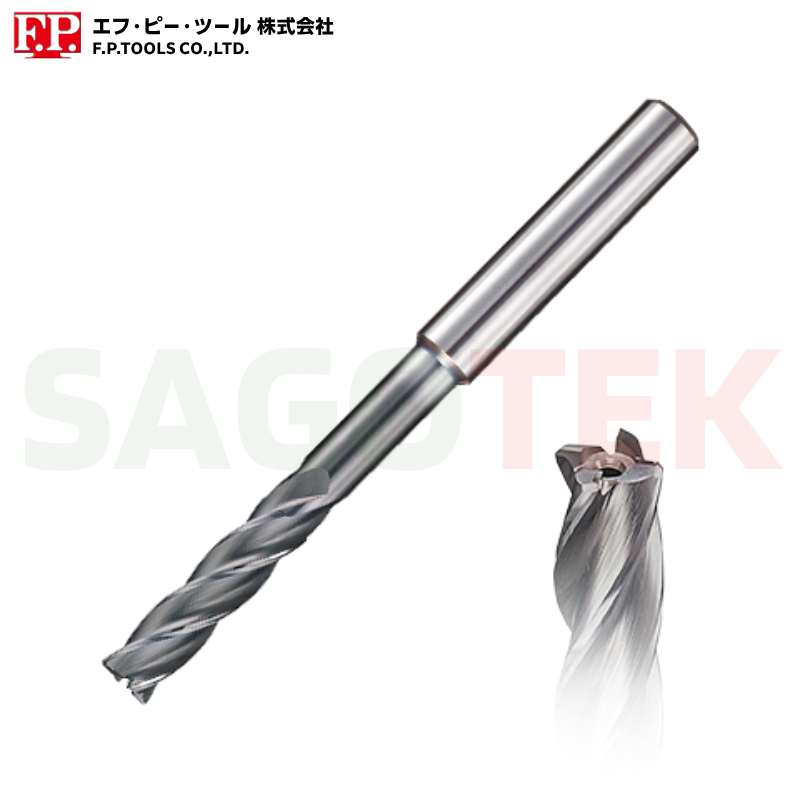

Carbide Reamer E Series with Coolant Hole

CE〇.〇〇〇H

» Việc áp dụng lỗ làm mát xuyên tâm giúp cải thiện khả năng thoát phoi và đảm bảo quá trình doa lỗ mù ổn định hơn
» Thiết kế rãnh dao độ cứng cao mới được phát triển giúp tăng độ bền và tuổi thọ dụng cụ
» Phiên bản chiều dài ngắn (short type) giúp gia tăng thêm độ cứng vững của dao

Danh mục: Thương hiệu:
📩 Nhận tư vấn 📞 Hotline: 0901 308 595

Specification Table


Product Code/ Cutting Diameter DC Point Length PL Length of Cut LC Usable Length LU Overall Length OAL Connection Diameter DCON Number of Effective Cutting Edges ZEFP
CE 2.950~3.095 H 0.15 12 25 65 3.0 4
CE 3.100~4.095 H 0.2 16 29 65 4.0 4
CE 4.100~5.095 H 0.2 20 35 75 5.0 4
CE 5.100~6.095 H 0.2 24 42 75 6.0 4
CE 6.100~8.095 H 0.3 24 48 85 8.0 4
CE 8.100~10.050 H 0.3 30 60 110 10.0 4

Reference Cutting Conditions

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 10~30 ~0.025 0.1
4 10~30 ~0.03 0.1
5 10~30 ~0.04 0.1
6 10~30 ~0.05 0.1
7 10~30 ~0.06 0.1
8 10~30 ~0.06 0.1
9 10~30 ~0.07 0.1
10 10~30 ~0.07 0.2

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 10~30 0.05~0.1 0.1
4 10~30 0.06~0.12 0.1
5 10~30 0.08~0.16 0.1
6 10~30 0.1~0.2 0.2
7 10~30 0.12~0.24 0.2
8 10~30 0.12~0.26 0.2
9 10~30 0.15~0.3 0.2
10 10~30 0.15~0.3 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 10~30 ~0.025 0.1
4 10~30 ~0.03 0.1
5 10~30 ~0.04 0.1
6 10~30 ~0.05 0.1
7 10~30 ~0.06 0.1
8 10~30 ~0.06 0.1
9 10~30 ~0.07 0.1
10 10~30 ~0.07 0.2

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 5~30 0.05~0.1 0.1
4 5~30 0.06~0.12 0.1
5 5~30 0.08~0.16 0.1
6 5~30 0.1~0.2 0.2
7 5~30 0.12~0.24 0.2
8 5~30 0.12~0.26 0.2
9 5~30 0.15~0.3 0.2
10 5~30 0.15~0.3 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 5~20 0.075~0.12 0.1
4 5~20 0.1~0.15 0.1
5 5~20 0.12~0.17 0.1
6 5~20 0.15~0.2 0.2
7 5~20 0.18~0.24 0.2
8 5~20 0.18~0.26 0.2
9 5~20 0.2~0.3 0.2
10 5~20 0.2~0.3 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 10~30 0.05~0.075 0.1
4 10~30 0.06~0.1 0.1
5 10~30 0.08~0.12 0.1
6 10~30 0.1~0.15 0.2
7 10~30 0.12~0.18 0.2
8 10~30 0.12~0.18 0.2
9 10~30 0.15~0.2 0.2
10 10~30 0.15~0.2 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 20~40 0.075~0.12 0.1
4 20~40 0.1~0.15 0.1
5 20~40 0.12~0.17 0.1
6 20~40 0.15~0.2 0.2
7 20~40 0.18~0.24 0.2
8 20~40 0.18~0.26 0.2
9 20~40 0.2~0.3 0.2
10 20~40 0.2~0.3 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 15~30 0.075~0.12 0.1
4 15~30 0.1~0.15 0.1
5 15~30 0.12~0.17 0.1
6 15~30 0.15~0.2 0.2
7 15~30 0.18~0.24 0.2
8 15~30 0.18~0.26 0.2
9 15~30 0.2~0.3 0.2
10 15~30 0.2~0.3 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 10~20 0.05~0.1 0.1
4 10~20 0.06~0.12 0.1
5 10~20 0.08~0.16 0.1
6 10~20 0.1~0.2 0.2
7 10~20 0.12~0.24 0.2
8 10~20 0.12~0.26 0.2
9 10~20 0.15~0.3 0.2
10 10~20 0.15~0.3 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
3 5~15 0.025~0.075 0.1
4 5~15 0.03~0.1 0.1
5 5~15 0.04~0.12 0.1
6 5~15 0.05~0.15 0.1
7 5~15 0.06~0.18 0.1
8 5~15 0.06~0.18 0.1
9 5~15 0.07~0.2 0.1
10 5~15 0.07~0.2 0.2
