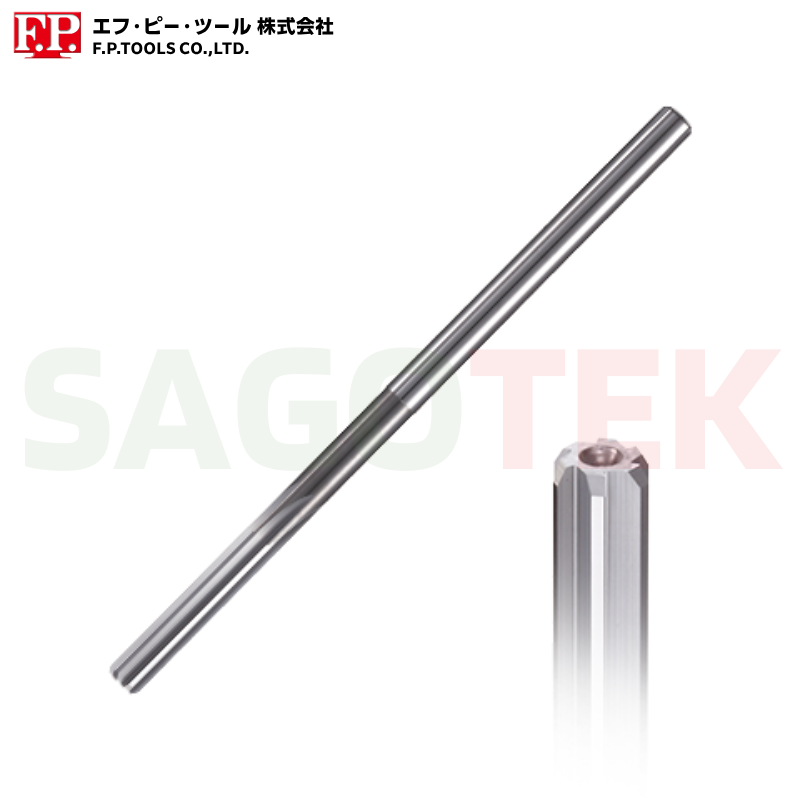

Carbide Reamer C Series

CC〇.〇〇〇

Danh mục: Thương hiệu:
📩 Nhận tư vấn 📞 Hotline: 0901 308 595

Specification Table


Product Code/ Cutting Diameter DC Point Length PL Length of Cut LC Usable Length LU Overall Length OAL Connection Diameter DCON Number of Effective Cutting Edges ZEFP
CC 2.910~3.005 0.5 20 40 80 2.9 4
CC 3.010~3.105 0.5 20 40 80 3.0 4
CC 3.110~3.205 0.5 20 40 80 3.1 4
CC 3.210~3.305 0.5 20 40 80 3.2 4
CC 3.310~3.405 0.5 20 40 80 3.3 4
CC 3.410~3.505 0.5 20 40 80 3.4 4
CC 3.510~3.605 0.5 20 40 80 3.5 4
CC 3.610~3.705 0.5 20 40 80 3.6 4
CC 3.710~3.805 0.5 20 40 80 3.7 4
CC 3.810~3.905 0.5 20 40 80 3.8 4
CC 3.910~4.005 0.5 20 40 80 3.9 4
CC 4.010~4.105 0.5 20 40 80 4.0 6
CC 4.110~4.205 0.5 20 40 80 4.1 6
CC 4.210~4.305 0.5 20 40 80 4.2 6
CC 4.310~4.405 0.5 20 40 80 4.3 6
CC 4.410~4.505 0.5 20 40 80 4.4 6
CC 4.510~4.605 0.5 20 40 80 4.5 6
CC 4.610~4.705 0.5 20 40 80 4.6 6
CC 4.710~4.805 0.5 20 40 80 4.7 6
CC 4.810~4.905 0.5 20 40 80 4.8 6
CC 4.910~5.005 0.5 20 40 80 4.9 6
CC 5.010~5.105 0.8 25 50 100 5.0 6
CC 5.110~5.205 0.8 25 50 100 5.1 6
CC 5.210~5.305 0.8 25 50 100 5.2 6
CC 5.310~5.405 0.8 25 50 100 5.3 6
CC 5.410~5.505 0.8 25 50 100 5.4 6
CC 5.510~5.605 0.8 25 50 100 5.5 6
CC 5.610~5.705 0.8 25 50 100 5.6 6
CC 5.710~5.805 0.8 25 50 100 5.7 6
CC 5.810~5.905 0.8 25 50 100 5.8 6
CC 5.910~6.005 0.8 25 50 100 5.9 6
CC 6.010~6.105 0.8 25 50 100 6.0 6
CC 6.110~6.205 0.8 25 50 100 6.1 6
CC 6.210~6.305 0.8 25 50 100 6.2 6
CC 6.310~6.405 0.8 25 50 100 6.3 6
CC 6.410~6.505 0.8 25 50 100 6.4 6
CC 6.510~6.605 0.8 25 50 100 6.5 6
CC 6.610~6.705 0.8 25 50 100 6.6 6
CC 6.710~6.805 0.8 25 50 100 6.7 6
CC 6.810~6.905 0.8 25 50 100 6.8 6
CC 6.910~7.005 0.8 25 50 100 6.9 6
CC 7.010~7.105 0.8 25 50 100 7.0 6
CC 7.110~7.205 0.8 25 50 100 7.1 6
CC 7.210~7.305 0.8 25 50 100 7.2 6
CC 7.310~7.405 0.8 25 50 100 7.3 6
CC 7.410~7.505 0.8 25 50 100 7.4 6
CC 7.510~7.605 0.8 25 50 100 7.5 6
CC 7.610~7.705 0.8 25 50 100 7.6 6
CC 7.710~7.805 0.8 25 50 100 7.7 6
CC 7.810~7.905 0.8 25 50 100 7.8 6
CC 7.910~8.005 0.8 25 50 100 7.9 6
CC 8.010~8.105 1.0 25 60 115 8.0 6
CC 8.110~8.205 1.0 25 60 115 8.1 6
CC 8.210~8.305 1.0 25 60 115 8.2 6
CC 8.310~8.405 1.0 25 60 115 8.3 6
CC 8.410~8.505 1.0 25 60 115 8.4 6
CC 8.510~8.605 1.0 25 60 115 8.5 6
CC 8.610~8.705 1.0 25 60 115 8.6 6
CC 8.710~8.805 1.0 25 60 115 8.7 6
CC 8.810~8.905 1.0 25 60 115 8.8 6
CC 8.910~9.005 1.0 25 60 115 8.9 6
CC 9.010~9.105 1.0 25 60 115 9.0 6
CC 9.110~9.205 1.0 25 60 115 9.1 6
CC 9.210~9.305 1.0 25 60 115 9.2 6
CC 9.310~9.405 1.0 25 60 115 9.3 6
CC 9.410~9.505 1.0 25 60 115 9.4 6
CC 9.510~9.605 1.0 25 60 115 9.5 6
CC 9.610~9.705 1.0 25 60 115 9.6 6
CC 9.710~9.805 1.0 25 60 115 9.7 6
CC 9.810~9.905 1.0 25 60 115 9.8 6
CC 9.910~10.005 1.0 25 60 115 9.9 6
CC 10.010~10.105 1.0 25 60 115 10.0 6
CC 10.110~10.205 1.0 25 60 115 10.1 6
CC 10.210~10.305 1.0 25 60 115 10.2 6
CC 10.310~10.405 1.0 25 60 115 10.3 6
CC 10.410~10.505 1.0 25 60 115 10.4 6
CC 10.510~10.605 1.0 25 60 115 10.5 6
CC 10.610~10.705 1.0 25 60 115 10.6 6
CC 10.710~10.805 1.0 25 60 115 10.7 6
CC 10.810~10.905 1.0 25 60 115 10.8 6
CC 10.910~11.005 1.0 25 60 115 10.9 6
CC 11.010~11.105 1.0 25 70 130 11.0 6
CC 11.110~11.205 1.0 25 70 130 11.1 6
CC 11.210~11.305 1.0 25 70 130 11.2 6
CC 11.310~11.405 1.0 25 70 130 11.3 6
CC 11.410~11.505 1.0 25 70 130 11.4 6
CC 11.510~11.605 1.0 25 70 130 11.5 6
CC 11.610~11.705 1.0 25 70 130 11.6 6
CC 11.710~11.805 1.0 25 70 130 11.7 6
CC 11.810~11.905 1.0 25 70 130 11.8 6
CC 11.910~12.005 1.0 25 70 130 11.9 6
CC 12.010~12.100 1.0 25 70 130 12.0 6

Reference Cutting Conditions

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~20 0.008~0.012 0.05
1 10~20 0.015~0.025 0.1
2 10~20 0.03~0.06 0.1
3 10~20 0.05~0.1 0.1
4 10~20 0.06~0.12 0.1
5 10~20 0.08~0.16 0.1
6 10~20 0.1~0.2 0.2
7 10~20 0.12~0.24 0.2
8 10~20 0.12~0.26 0.2
9 10~20 0.15~0.3 0.2
10 10~20 0.15~0.3 0.3
12 10~20 0.18~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~20 ~0.005 0.05
1 10~20 ~0.01 0.05
2 10~20 ~0.017 0.08
3 10~20 ~0.025 0.1
4 10~20 ~0.03 0.1
5 10~20 ~0.04 0.1
6 10~20 ~0.05 0.1
7 10~20 ~0.06 0.1
8 10~20 ~0.06 0.1
9 10~20 ~0.07 0.1
10 10~20 ~0.07 0.2
12 10~20 ~0.09 0.2

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 5~15 0.008~0.012 0.05
1 5~15 0.015~0.025 0.1
2 5~15 0.03~0.06 0.1
3 5~15 0.05~0.1 0.1
4 5~15 0.06~0.12 0.1
5 5~15 0.08~0.16 0.1
6 5~15 0.1~0.2 0.2
7 5~15 0.12~0.24 0.2
8 5~15 0.12~0.26 0.2
9 5~15 0.15~0.3 0.2
10 5~15 0.15~0.3 0.3
12 5~15 0.18~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 5~12 0.012~0.025 0.05
1 5~12 0.025~0.05 0.1
2 5~12 0.05~0.08 0.1
3 5~12 0.075~0.12 0.1
4 5~12 0.1~0.15 0.1
5 5~12 0.12~0.17 0.1
6 5~12 0.15~0.2 0.2
7 5~12 0.18~0.24 0.2
8 5~12 0.18~0.26 0.2
9 5~12 0.2~0.3 0.2
10 5~12 0.2~0.3 0.3
12 5~12 0.27~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~18 0.008~0.012 0.05
1 10~18 0.015~0.025 0.1
2 10~18 0.03~0.05 0.1
3 10~18 0.05~0.75 0.1
4 10~18 0.06~0.1 0.1
5 10~18 0.08~0.12 0.1
6 10~18 0.1~0.15 0.2
7 10~18 0.12~0.18 0.2
8 10~18 0.12~0.18 0.2
9 10~18 0.15~0.2 0.2
10 10~18 0.15~0.2 0.3
12 10~18 0.18~0.27 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 20~40 0.012~0.025 0.05
1 20~40 0.025~0.05 0.1
2 20~40 0.05~0.08 0.1
3 20~40 0.075~0.12 0.1
4 20~40 0.1~0.15 0.1
5 20~40 0.12~0.17 0.1
6 20~40 0.15~0.2 0.2
7 20~40 0.18~0.24 0.2
8 20~40 0.18~0.26 0.2
9 20~40 0.2~0.3 0.2
10 20~40 0.2~0.3 0.3
12 20~40 0.27~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 15~30 0.012~0.025 0.05
1 15~30 0.025~0.05 0.1
2 15~30 0.05~0.08 0.1
3 15~30 0.075~0.12 0.1
4 15~30 0.1~0.15 0.1
5 15~30 0.12~0.17 0.1
6 15~30 0.15~0.2 0.2
7 15~30 0.18~0.24 0.2
8 15~30 0.18~0.26 0.2
9 15~30 0.2~0.3 0.2
10 15~30 0.2~0.3 0.3
12 15~30 0.27~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 10~20 0.008~0.012 0.05
1 10~20 0.015~0.025 0.1
2 10~20 0.03~0.06 0.1
3 10~20 0.05~0.1 0.1
4 10~20 0.06~0.12 0.1
5 10~20 0.08~0.16 0.1
6 10~20 0.1~0.2 0.2
7 10~20 0.12~0.24 0.2
8 10~20 0.12~0.26 0.2
9 10~20 0.15~0.3 0.2
10 10~20 0.15~0.3 0.3
12 10~20 0.18~0.36 0.3

Cutting Diameter DC (mm) Cutting speed Vc (m/min) Feed f (mm/rev) Reaming allowance (φmm)
0.5 5~15 0.005~0.012 0.05
1 5~15 0.01~0.025 0.05
2 5~15 0.017~0.05 0.08
3 5~15 0.025~0.075 0.1
4 5~15 0.03~0.1 0.1
5 5~15 0.04~0.12 0.1
6 5~15 0.05~0.15 0.1
7 5~15 0.06~0.18 0.1
8 5~15 0.06~0.18 0.1
9 5~15 0.07~0.2 0.1
10 5~15 0.07~0.2 0.2
12 5~15 0.09~0.27 0.2
